HY375 EDGE BANDER
HY375 edge banding machine complete with faster end trimming unit, allowing to process the panel perfectly , with a small investment. It’s the right answer for the company that wants a professional edge banding.
- Net Weight (N.W): 1550 kg
- Power: 9.5 kW
- Packing Size: 4630 × 1000 × 1600 mm
STANDARD ACCESSORIES
Touch screen system, which can be directly and conveniently
selected its main functions.faults can be reflected on the touch
screen,and easy to maintain.
Door of the glue pot can be closed automatic ,preventing the glue
water blocked.Double spiral glue feeding system supply sufficient
glue feeding to the panel.

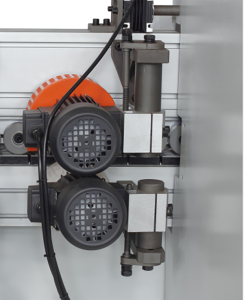

High speed motors make sure end cutting stable and perfect .
Fine trimming
With two independent trimming unit with two high frequency motor
running at 12000rpm,2mm radius tools are included as standard ,
also can be equipped with 3mm radius tools.
Scrapinh unit
The Radius surface receives a light scraping removing any remnants
from the trimming process,ensuring a smooth finish.
Buffing unit
Effective clean the glue residue on the edge
SPECIFICATION
| Model | HY375 |
| Panel width | Min80mm |
| Panel thickness | 10-60mm |
| Edge thickness | 0.4-3mm |
| Feeding speed | 12-20m/min |
| Air pressure | 0.6Mpa |
| N.W | 15500KG |
| Power | 9.5kw |
| Packing size | 4630*1000*1600m |
