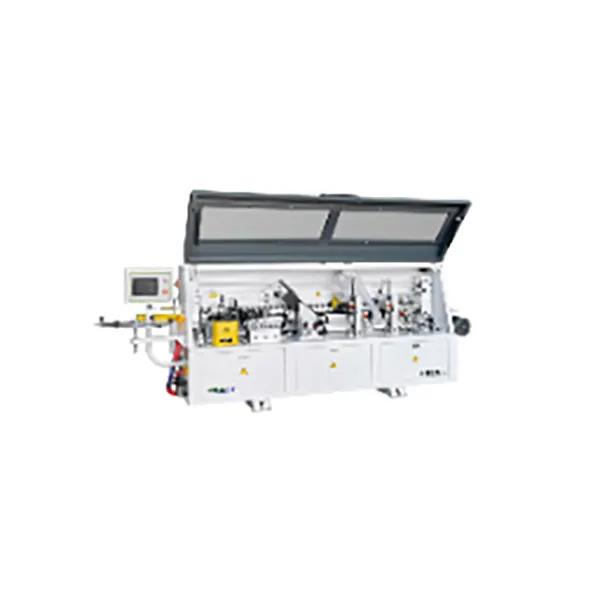

HE255 EDGE BANDER
Economic and ease-of-use with all inclusive equipment: HE255 edge banding machine with european gluing structure ,the quick and easy change to other achieve colours, more faster feeding speed , Touch Control and optional R scrapping unit The features, coupled to its ease-of-use, makes it the perfect edge bander for small woodworking, furniture and panel processing companies. It belongs to a high productivity automatic edge bander with high quality performance.
- Net Weight (N.W): 900 kg
- Power: 7 kW
- Packing Size: 3300 × 770 × 1370 mm
STANDARD ACCESSORIES
Glue pot:
End cutting :With two high speed motor with power 0.35kwfor each motor and high precision linear guide guarantee forperfect cutting results.

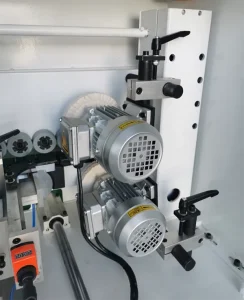

Fine trimming :With two high speed motor, adjustmentthrough the counter convenience and quickly.
Scraping:Removes any remaining glue residue from
thepanel, leaving a perfect finish.
Buffing:effectively clean the glue residue on the edge
SPECIFICATION
| Model | HE255 |
| Panel length | Min80mm |
| Panel width | Min80mm |
| Panel thickness | 10-55mm |
| Edge thickness | 0.4-3mm |
| Feeding speed | 13m/min |
| Air pressure | 0.6Mpa |
| N.W | 900KG |
| Power | 7kw |
| Packing size | 3300*770*1370mm |
