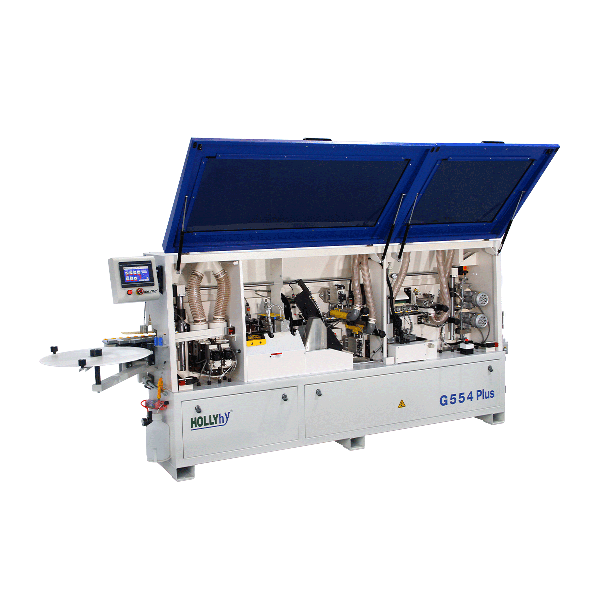

G554 PLUS EDGE BANDER
With compact structure design and well thought out machine concept remarkable detailed design and the perfect coordination of the individual components to ensure the perfect finishing.
- Net Weight (N.W): 945 kg
- Power: 7.27 kW
- Packing Size: 3265 × 725 × 1448 mm
Products Categories
Get A Free Quote
STANDARD ACCESSORIES
Control panel with 7″touch screen
Easy,self-explanatory representation of the units and their functions,
error message show on the screen.
Pre-milling unit
The two diamond tipped spindle heads rotate in opposing directions
ensure a perfectly straight .workpieces edge ,to which before the edge
material can be glued.
Edge feed and guillotine scissors
Coiled material 0.4-2mm thick can be used for workpieces up to
43mm in the thickness.
Glue pot unit
The edgebander require only 15minutes to reach operate temperature,
with the Teflon coated glue pot and quick change system.
SPECIFICATION
| Model | G560 |
| Panel length | Min70mm |
| Panel width | Min80mm |
| Panel thickness | 12-50mm |
| Edge thickness | 0.4-3mm |
| Feeding speed | 8m/min |
| Air pressure | 0.6Mpa |
| N.W | 560KG |
| Power | 6.18kw |
| Oversize | 2625*1315*1315mm |
| Packing size | 2200*725*1248mm |
