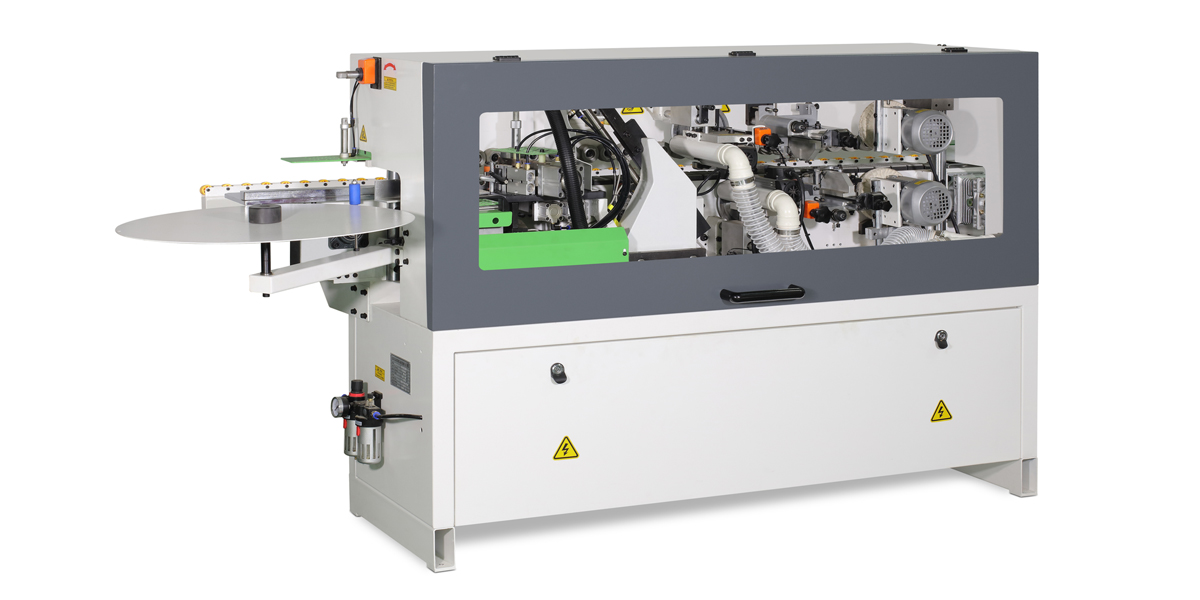

With compact structure design and well thought out machine concept remarkable detailed design and the perfect coordination of the individual components to ensure the perfect finishing.
N.W
Power
Packing size
| Model | HY35ZRP |
|---|---|
| Panel length | Min70mm |
| Panel width | Min80mm |
| Panel thickness | 12-50mm |
| Edge thickness | 0.4-3mm |
| Feeding speed | 8m/min |
| Air pressure | 0.6Mpa |
| N.W | 540KG |
| Power | 4.34kw |
| Oversize | 2530*1055*1200mm |
| Packing size | 2200*645*1235mm |
Touch Screen Control: only "touch" the button can use the machine.
Error free machining with thetouch-screen display ， intuitive and
easy to select the main machine functions.
End cutting :With high speed motor and high precision linear guide
guarantee for perfect cutting results.
Fine trimming :With two high speed motor ，adjustment through the
counter convenience and quickly.2 mm radius tooling is standard.
Scraping unit
Buffing :Make the panel surface have excellent finish
