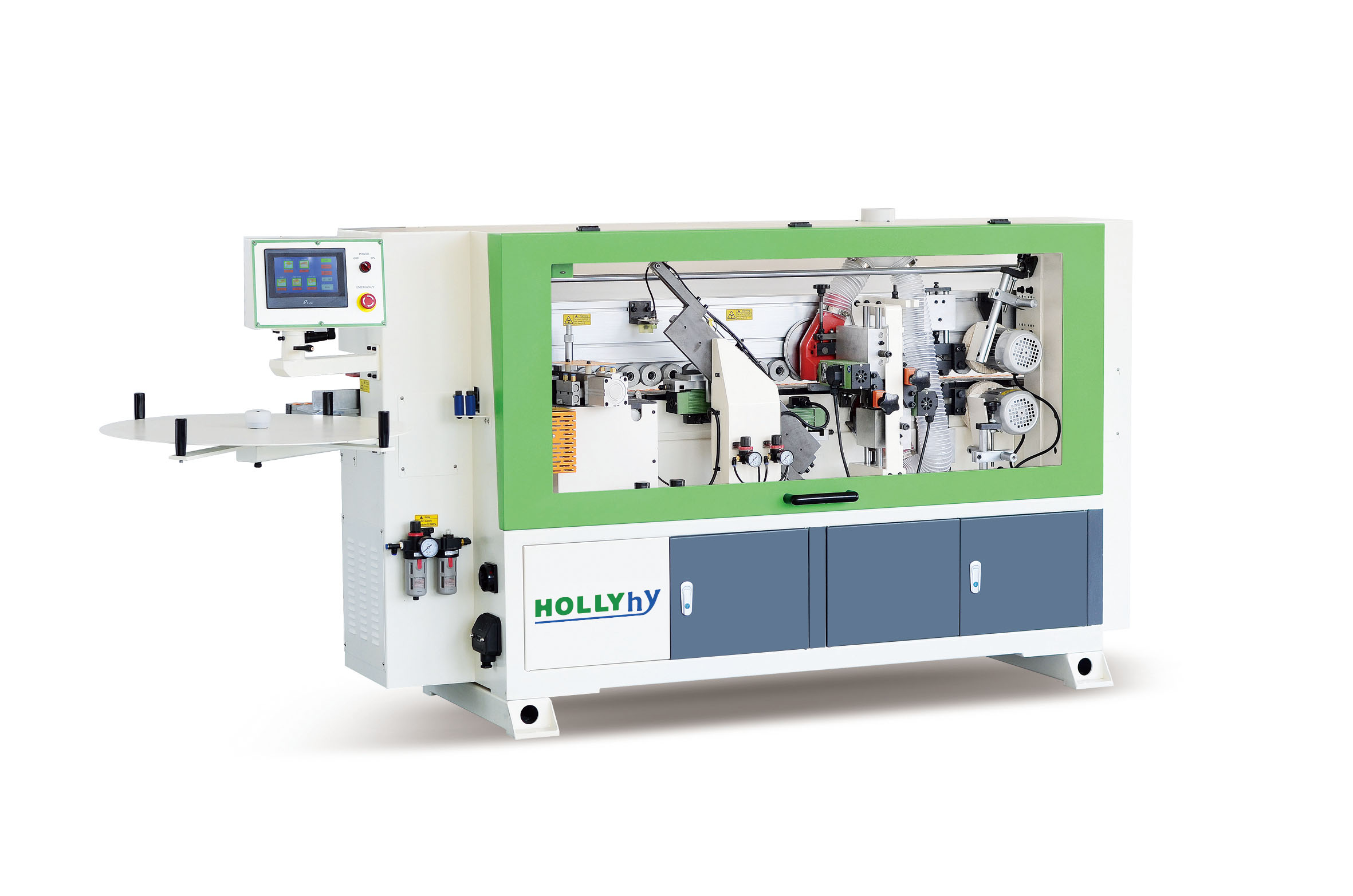

A compact and ease-of-use with all inclusive equipment: HY260 edge banding machine with european gluing structure ,the quick and easy change to other achieve colours, more faster feeding speed , Touch Control and optional R scrapping unit
The features, coupled to its ease-of-use, makes it the perfect edge bander for small woodworking, furniture and panel processing companies. It belongs to a high productivity automatic edge bander with high quality performance.
N.W
Power
Packing size
| Model | HY260A |
|---|---|
| Panel length | Min120mm |
| Panel width | Min80mm |
| Panel thickness | 10-50mm |
| Edge thickness | 0.4-3mm |
| Feeding speed | 13m/min |
| Air pressure | 0.6Mpa |
| N.W | 700KG |
| Power | 5.64kw |
| Oversize | 3220*1465*1500mm |
| Packing size | 2690*712*1462mm |
Glue pot:changeable glue pot can be quickly and easily replaced and hold 2 kg of adhesive granulate.
The heating power is 1.75kw,about 20mins heating time ,the machine is ready for use .
The quick and easy change to other adhesive colours save lots of time no need to clean again.

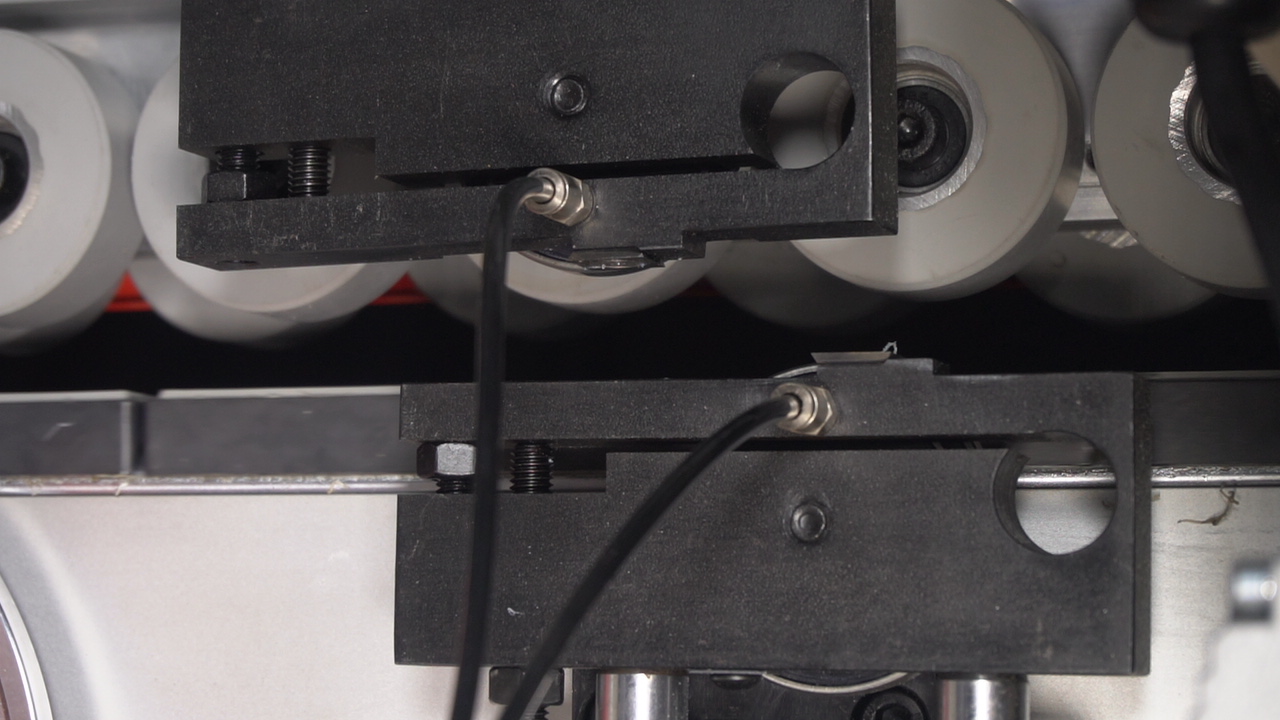

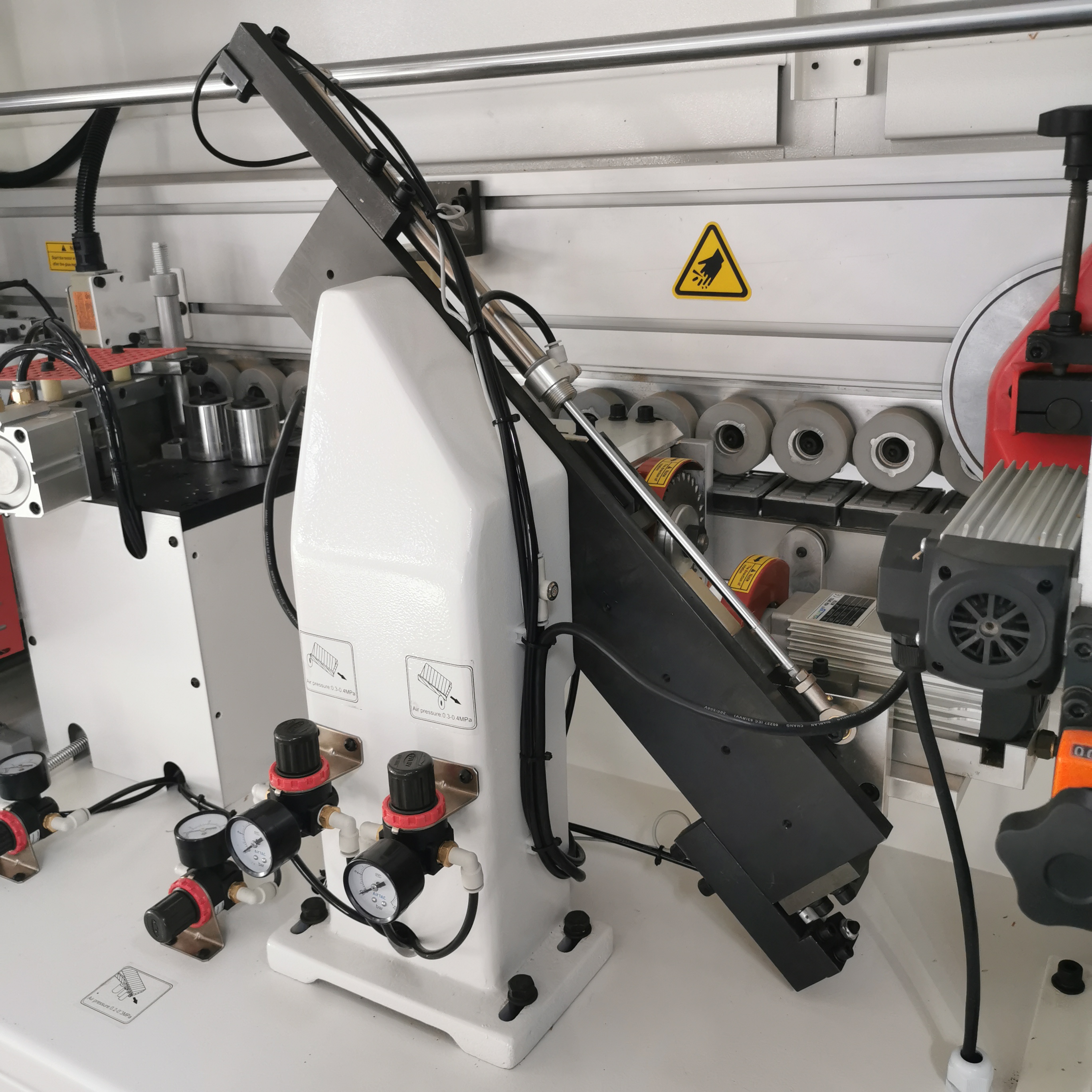

End cutting :With two high speed motor with power 0.35kw for each motor and high precision linear
guide guarantee for perfect cutting results.

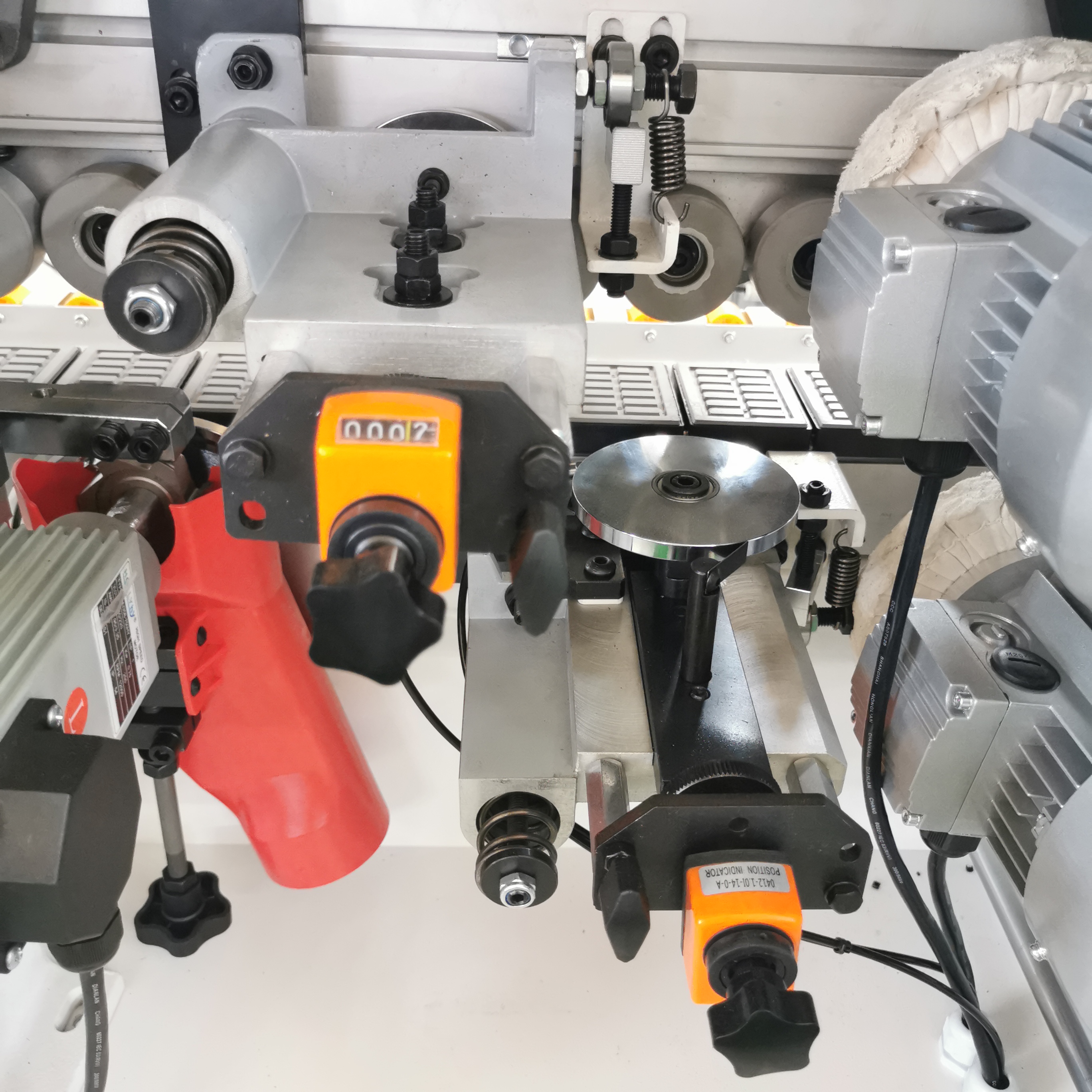

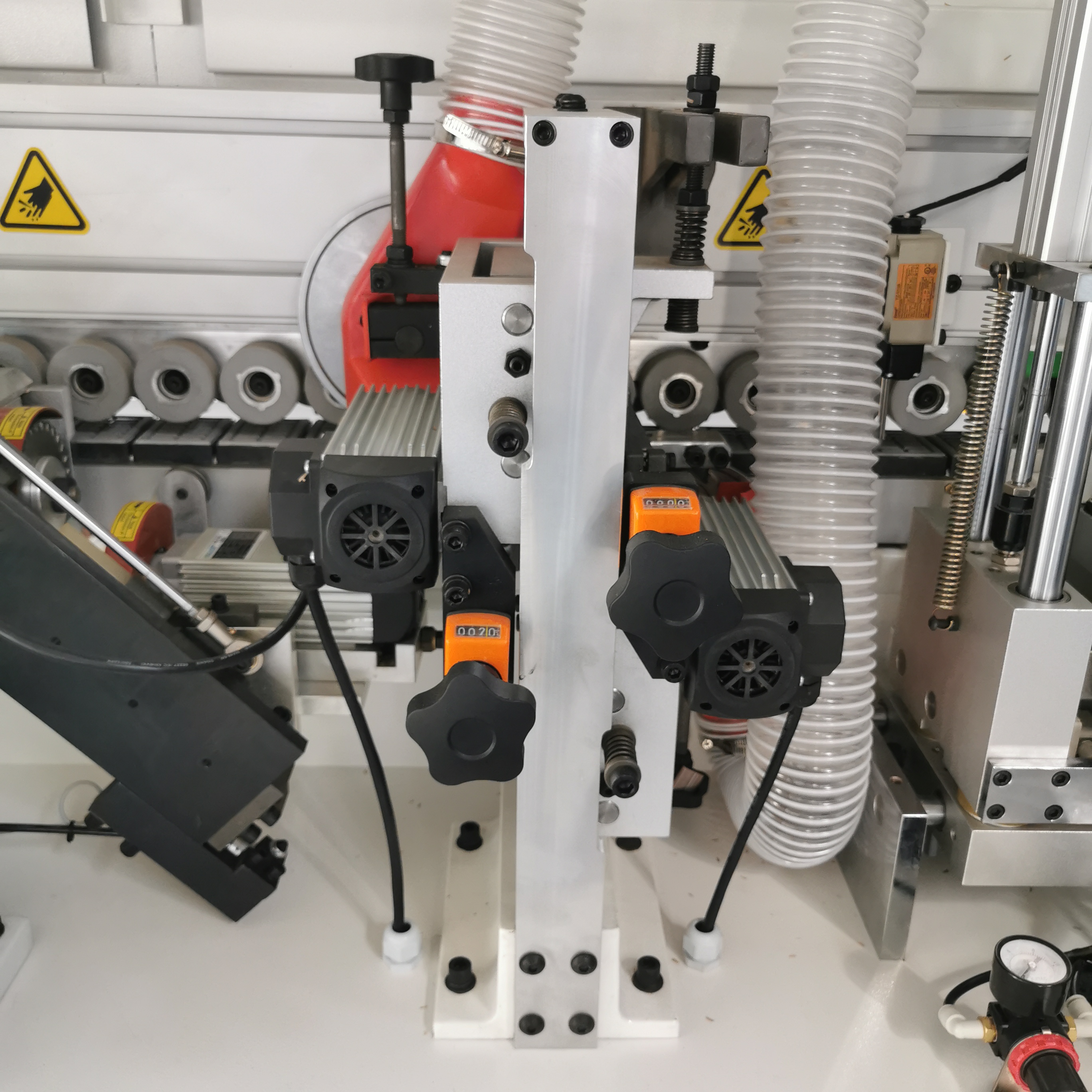

Fine trimming :With two high speed motor ，adjustment through the counter convenience and quickly.
2 mm radius tooling is included as standard.
1/2 scrapper:Removes any remaining glue residue from the panel, leaving a perfect finish.
Optional:Edge scraping unit，The top surface of the edge radius is removed by the light scraping of
the radius knife，ensure the smooth finish.
