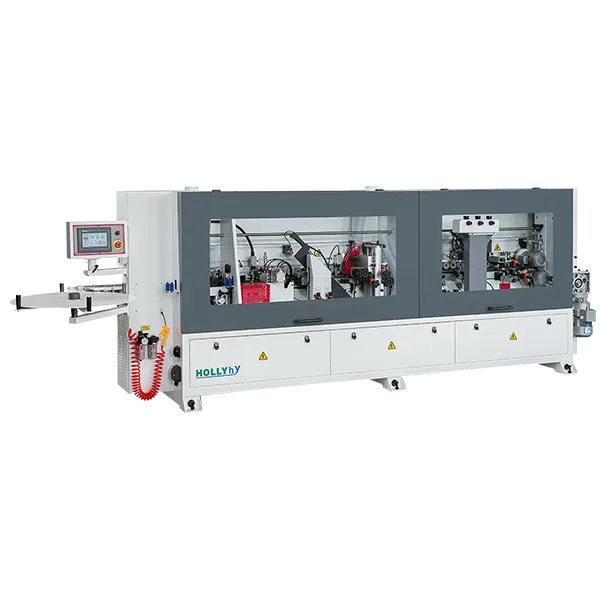

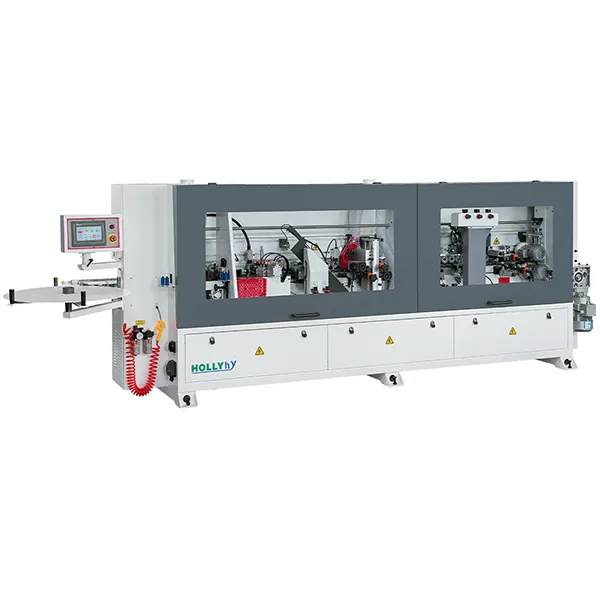

HY460J EDGE BANDER
HY460 with more faster feeding speed and it can be reached to 13m/min,the corner rounding function with two high frequency motor can satisfy customers who pursue perfect finishing
- Net Weight (N.W): 1020 kg
- Power: 6.19 kW
- Packing Size: 3710 × 712 × 1462 mm
Products Categories
Get A Free Quote
STANDARD ACCESSORIES
Pre-milling:Two diamond miling tools rotating with high speed in apposing directions,ensure
aprecise
machined edge, before the edge material is attached the processing height can be reached 55m

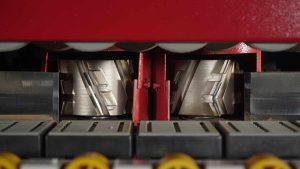

Corner rounding Rounding of front and rear edge angle on straight chamfered and post
formed panels.
The operation is automatically carried out by the unit and get an optimal finishing, without
necessity of
further machining
R scrapperremoved by the light scraping of the radius knife, ensure the smooth finish
SPECIFICATION
| Model | HY460J |
| Panel length | Min120mm |
| Panel width | Min80mm |
| Panel thickness | 10-50mm |
| Edge thickness | 0.4-3mm |
| Feeding speed | 13m/min |
| Air pressure | 0.6Mpa |
| N.W | 1020KG |
| Power | 6.19kw |
| Oversize | 4160*1110*1500mm |
| Packing size | 3710*712*1462mm |
